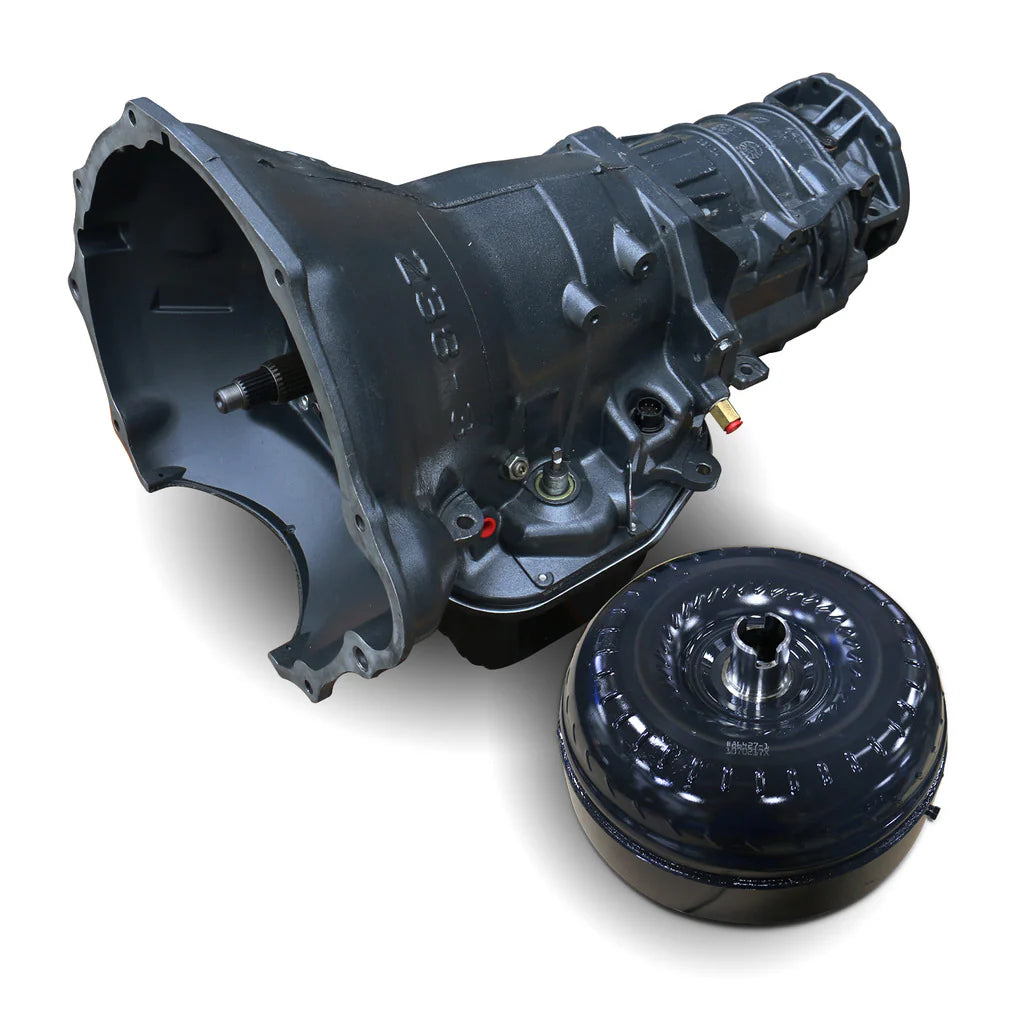

TorqueMaster Transmission & Converter Package Dodge 48RE 2005-2007 w/TVV Stepper Motor c/w Auxiliary Filter & Billet Input

$2,500 Refundable Core Deposit Required

Transmission Features

• Upgraded valvebody with governor solenoid and pressure transducer (47RE/48RE) - 2x stock burst pressure
• Increased line pressure to 190-200psi with modified manual valve for lube in all positions
• Stock thrust bushings replaced with roller Torrington bearings
• Enhanced clutch count: Direct 6, Forward 5, OD 6, OD Direct 10
• High temp/energy Raybestos band with billet band lever and strut
• Billet big fine spline input shaft to take the snap from rapid throttle and high horsepower
• Drilled intermediate shaft for increased lubrication
• BD rigid aluminum heavy duty pan adds 2qt capacity with heat-dissipating fins and magnetic drain plug
• BD auxiliary full flow filter kit and cooler line case saver included
• Every transmission dyno tested - Not warranted for race or sled pull use

Torque Converter Features

• Triple disc with enhanced stall for street/towing applications
• HD springs absorb engagement shock; stamp forged 1-piece cover eliminates warpage
• Taller cover can be rebuilt more often
• Trapezoid teeth design with engineered tighter tolerances for self-centering, increased contact, decreased wear and chatter
• Thrust bearings (not plastic washers); riveted piston ensures alignment and eliminates vibration
• Cast stator maximizes torque; new sprag components ensure long-term durability
• Furnaced brazed turbine fins for improved fluid coupling efficiency
• 12lbs lighter than competitors

About This Package

When you purchase a BD transmission and torque converter package, you receive a matched set that has been dyno tested together for ultimate performance and reliability. Every transmission comes with BD's own heavy duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

Warranty

Parts: 36 months / 150,000 miles
Labor: 12 months / 24,000 miles
Note: No race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at oil/air transmission cooler outlet.

Emissions

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
