TorqueMaster Dodge 68RFE Transmission & Converter Package 2019-2024 c/w Billet Input Shaft

Price includes $2,500 refundable core deposit.

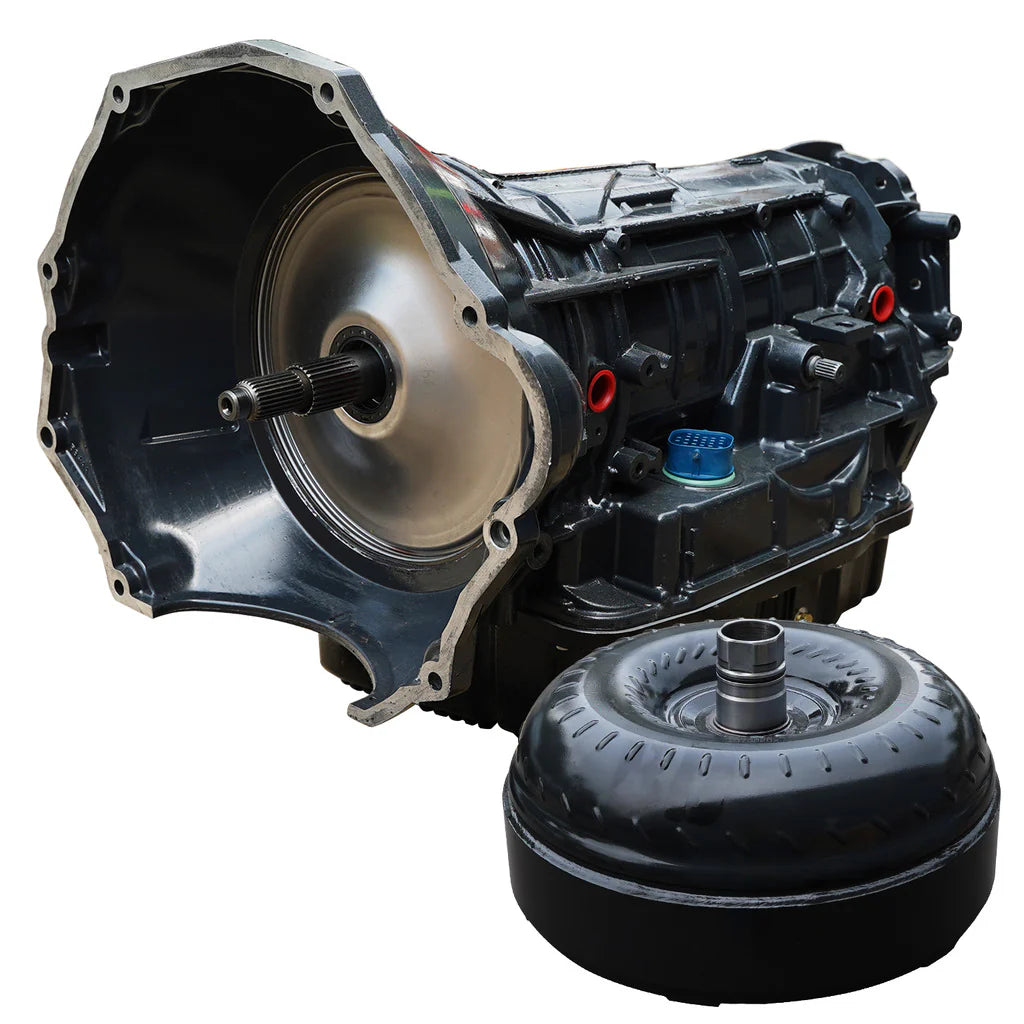

BD TorqueMaster 68RFE Transmission & ProForce 3D Converter Package

When you purchase a BD transmission and torque converter package, you get a matched set that has been dyno tested together for ultimate performance and reliability. Every transmission includes BD's Heavy Duty pan for extra fluid capacity. For towing, street, or track use, BD delivers a dependable transmission that stands up to your diesel's power and torque demands.

Transmission Upgrades:

• Enhanced Clutch Capacity:
  • Overdrive clutches: 33% increase
  • 2C clutches: 33% increase
• Hard Anodized Valve Body with new solenoid pack installed in every unit
• Custom Bonded Gasket Valve Body Separator Plate - Increases line pressure while stopping internal cross leaks
• Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
• Heavy Duty Cam & Roller Design low reverse one-way clutch
• New 4C Billet Spring Retainer for increased durability
• Steel Girdle Added to 2C Piston - Allows for more clutches and broader apply area
• BD Durable QT100 Pressure Plates - Allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Custom Big Stack Overdrive Shaft for enhanced performance
• BD Reinforced Accumulator Plate for added strength
• BD Deep Sump Oil Pan - Adds extra fluid and cooling capacity while reducing case flex

ProForce 3D Triple Disc Torque Converter - Enhanced Stall (Street/Towing):

• HD springs absorb shock of engagement
• Stamp-forged 1-piece cover eliminates warpage from clutch heat
• Taller cover can be rebuilt more often
• Trapezoid teeth design with engineered tighter tolerances
• Self-centering trapezoid teeth design increases contact, decreases wear and chatter
• Thrust bearings (not plastic thrust washers)
• Riveted piston ensures alignment and eliminates vibration or embrittlement from welding
• Cast stator design maximizes torque
• New sprag components ensure long-term durability
• Furnace-brazed turbine fins for improved fluid coupling efficiency
• Reduced overall weight by 12 lbs compared to competitors

Warranty:

• Parts: 36 months / 150,000 miles
• Labor: 12 months / 24,000 miles
• Race abuse not covered

Important Notes:

• Special tuning required for 2019-up applications for increased line pressure (line pressure controller not included)

Emissions: Legal for sale and use in all 50 states. Does not require EO in California.
