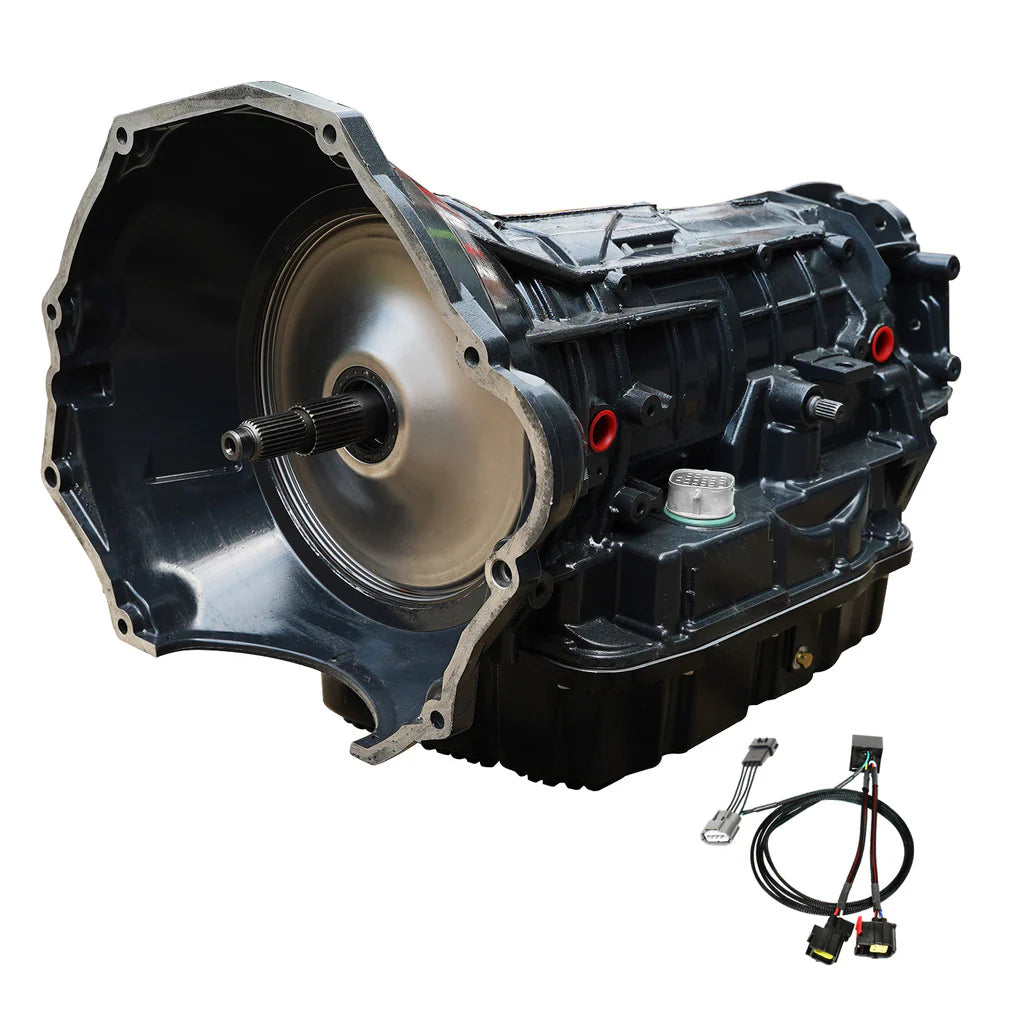

TorqueMaster Dodge 68RFE Transmission - 2007.5-2018 4wd c/w Billet Input Shaft

BD TorqueMaster 68RFE Transmission - Industry Leading Performance

BD's 68RFE is the industry-leading transmission that addresses the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer "Big Stack" spline OD shaft, and 16 frictional surfaces. Every BD 68RFE is built to withstand 250psi of line pressure for unrivaled torque holding capacity. Comes with Billet Input Shaft designed to withstand rapid acceleration and high torque.

Transmission Upgrades:

• Enhanced Clutch Capacity:
  • Overdrive clutches: 33% increase
  • 2C clutches: 33% increase
• Hard Anodized Valve Body with new solenoid pack installed in every unit
• Custom Bonded Gasket Valve Body Separator Plate - Increases line pressure while stopping internal cross leaks
• BD ProTech68 Pressure Control Module - Ramps up line pressure to 250psi using MAP sensor to input load and adjust pressure required
• Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
• Heavy Duty Cam & Roller Design low reverse one-way clutch
• New 4C Billet Spring Retainer for increased durability
• Steel Girdle Added to 2C Piston - Allows for more clutches and broader apply area
• BD Durable QT100 Pressure Plates - Allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Custom Big Stack Overdrive Shaft for enhanced performance
• BD Reinforced Accumulator Plate for added strength
• TCC Limit Valve - Machined and sleeved to address high wear area within pump

Additional Features:

• BD Deep Sump Oil Pan - Adds extra fluid and cooling capacity while reducing case flex
• Performance transmission with the added touch of a Billet Input Shaft

Warranty:

• Parts: 36 months / 150,000 miles
• Labor: 12 months / 24,000 miles
• Race abuse not covered

Important: BD torque converter must be installed at the time of transmission installation. Use of a 3rd party or OE converter will invalidate the transmission warranty.

Emissions: Legal for sale and use in all 50 states. Does not require EO in California.
