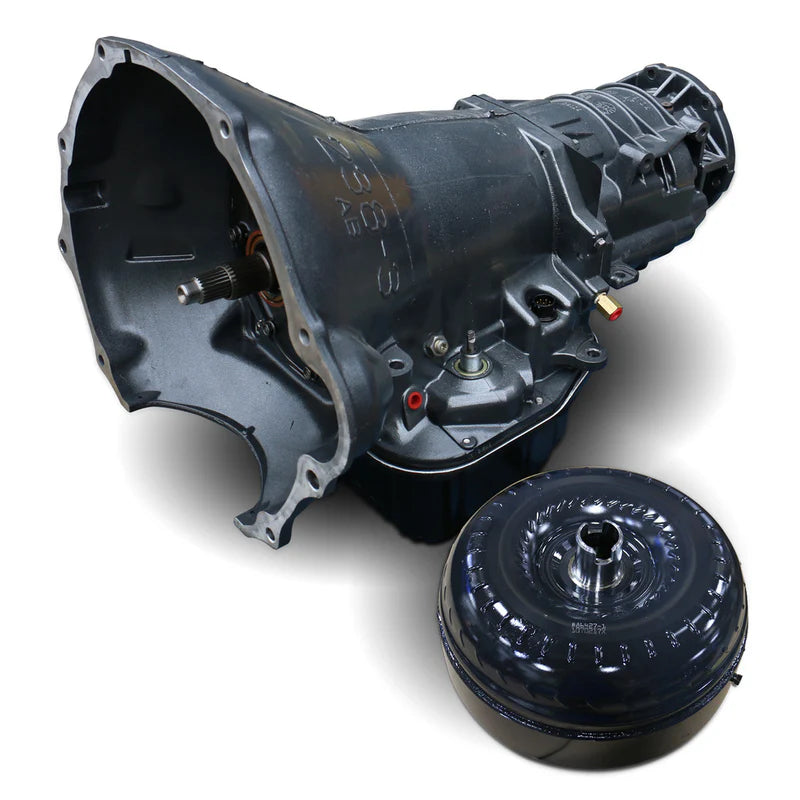

TorqueMaster Dodge 47RE Transmission & Converter Package - 2000-2002 2wd c/w Auxiliary Filter & Billet Input

BD TorqueMaster 47RE Transmission & Converter Package

When you purchase a BD transmission and torque converter package, you get a matched set that has been dyno tested together for ultimate performance and reliability. Every transmission includes BD's Heavy Duty pan for extra fluid capacity. For towing, street, or track use, BD delivers a dependable transmission that stands up to your diesel's power and torque demands.

Transmission Upgrades:

• Enhanced Clutch Capacity:
  • Direct: 6 clutches
  • Forward: 5 clutches
  • Overdrive: 6 clutches
  • OD Direct: 10 clutches
• Upgraded Valve Body with increased line pressure to 190-200psi
• Roller Torrington Bearings - Stock thrust bushings replaced for improved durability
• Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
• Billet Barrel Strut for increased strength
• Billet Band Lever for enhanced performance
• High-Temp/Energy Raybestos Band for superior performance
• Drilled Intermediate Shaft for increased lubrication
• Modified Manual Valve for lube in all positions
• Upgraded 48RE Sunshell for added durability
• Upgraded Governor Pressure Transducer (47RE/48RE)
• Upgraded Governor Solenoid - Twice the burst pressure than stock
• No Shuttle Shifting Problems

Triple Disc Torque Converter - Enhanced Stall (Street/Towing):

• HD springs absorb shock of engagement
• Stamp-forged 1-piece cover eliminates warpage from clutch heat
• Taller cover can be rebuilt more often
• Trapezoid teeth design with engineered tighter tolerances
• Self-centering trapezoid teeth design increases contact, decreases wear and chatter
• Thrust bearings (not plastic thrust washers)
• Riveted piston ensures alignment and eliminates vibration or embrittlement from welding
• Cast stator design maximizes torque
• New sprag components ensure long-term durability
• Furnace-brazed turbine fins for improved fluid coupling efficiency
• Reduced overall weight by 12 lbs compared to competitors

Additional Features:

• BD Rigid Aluminum Heavy Duty Pan - Adds 2 quarts extra oil capacity with heat-dissipating fins and magnetic drain plug
• BD Auxiliary Full Flow Filter Kit for extra protection
• Cooler Line Case Saver included in every transmission
• Every transmission is dyno tested for quality assurance

Warranty:

• Parts: 36 months / 150,000 miles
• Labor: 12 months / 24,000 miles
• Race or sled pull use not covered
• Remote filter required for inspection with cooler flow rate in GPM at oil/air transmission cooler outlet

Emissions: Legal for sale and use in all 50 states. Does not require EO in California.
