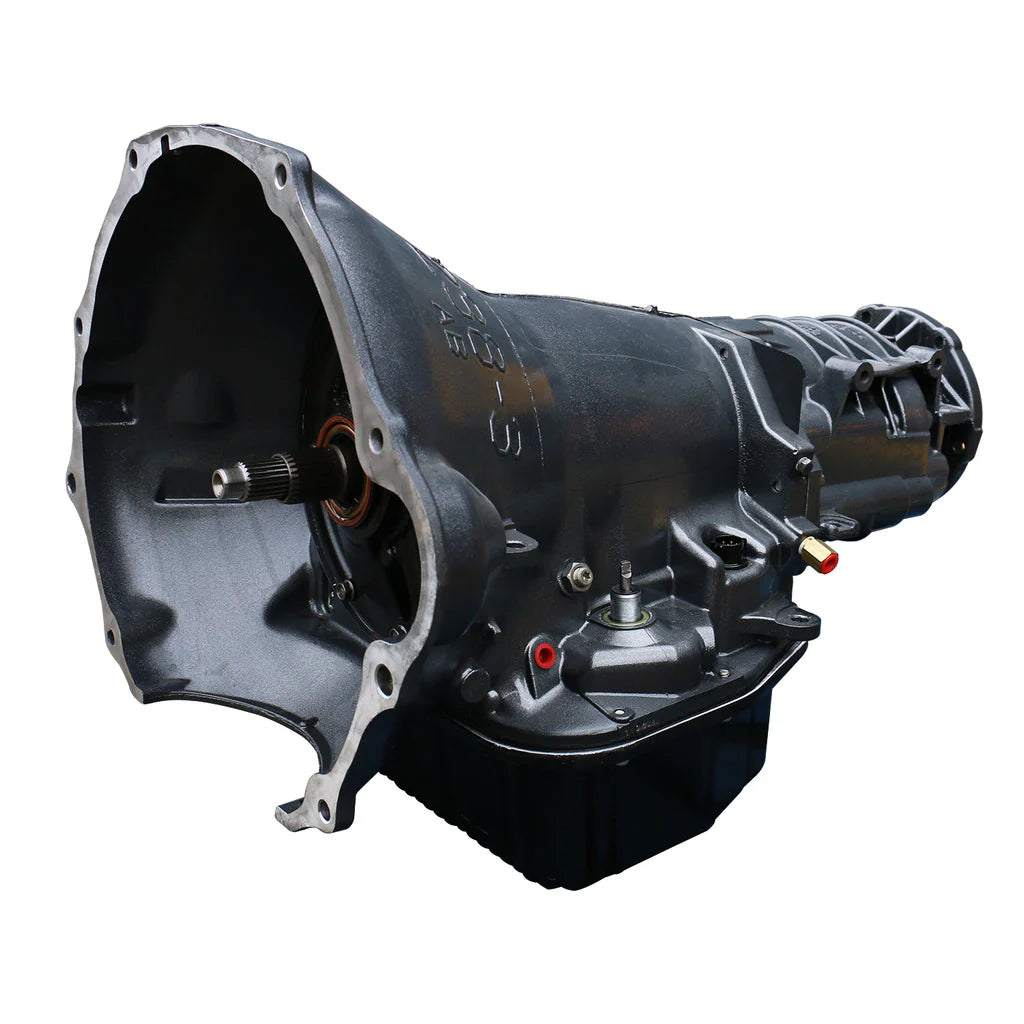

TorqueMaster Dodge 47RE Transmission - 2000-2002 4wd c/w Auxiliary Filter & Billet Input

BD TorqueMaster 47RE Transmission - Heavy Duty Upgrade

The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy-duty transmission pan and most packages include our auxiliary transmission filter kit for added protection. Comes with Billet Input Shaft designed to withstand rapid acceleration and high torque—the perfect combination for those installing the ProForce 3 or Hi5 torque converter.

Transmission Upgrades:

• Enhanced Clutch Capacity:
  • Overdrive: 6 clutches
  • OD Direct: 10 clutches
  • Forward: 5 clutches
  • Direct: 6 clutches
• Upgraded Valve Body with increased line pressure to 190-200psi
• Roller Torrington Bearings - Stock thrust bushings replaced for improved durability
• Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
• Billet Barrel Strut for increased strength
• Billet Band Lever for enhanced performance
• High-Temp/Energy Raybestos Band for superior performance
• Drilled Intermediate Shaft for increased lubrication
• Modified Manual Valve for lube in all positions
• Upgraded 48RE Sunshell for added durability
• Upgraded Governor Pressure Transducer (47RE/48RE)
• Upgraded Governor Solenoid - Twice the burst pressure than stock
• No Shuttle Shifting Problems

Additional Features:

• BD Rigid Aluminum Heavy Duty Pan - Adds 2 quarts extra oil capacity with heat-dissipating fins and magnetic drain plug

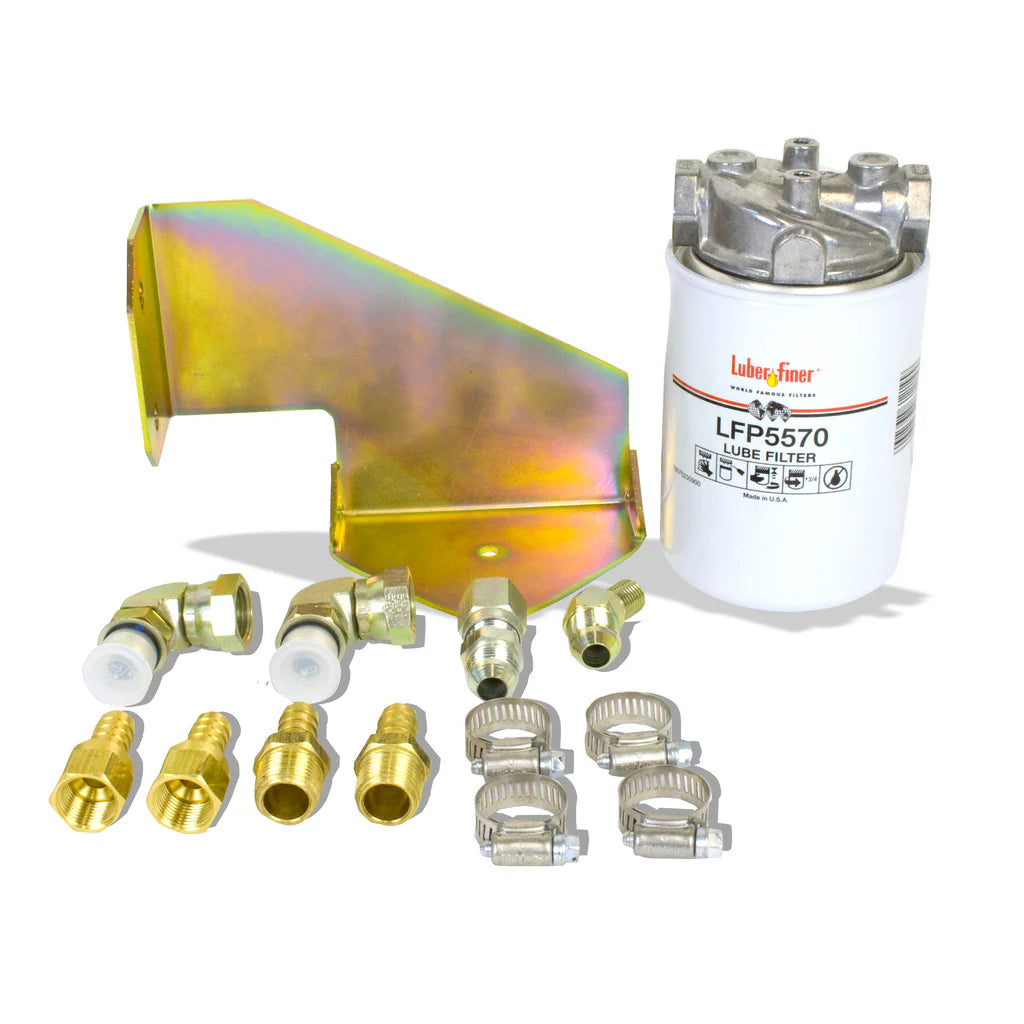

• BD Auxiliary Full Flow Filter Kit for extra protection
• Cooler Line Case Saver included in every transmission
• Every transmission is dyno tested for quality assurance

Warranty:

• Parts: 36 months / 150,000 miles
• Labor: 12 months / 24,000 miles
• Race or sled pull use not covered
• Remote filter required for inspection with cooler flow rate in GPM at oil/air transmission cooler outlet

Important: BD torque converter must be installed at the time of transmission installation. Use of a 3rd party or OE converter will invalidate the transmission warranty.

Emissions: Legal for sale and use in all 50 states. Does not require EO in California.
