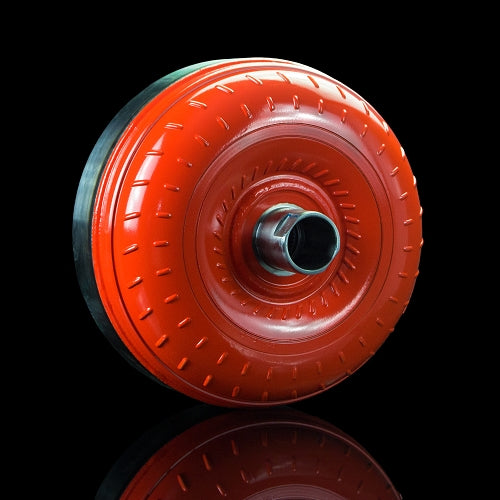

Suncoast 10R140 Torque Converter – Guardian Series

Built for the Ford 10R140

The Ford 10R140 is a 10-speed automatic transmission engineered for heavy-duty Super Duty F-Series trucks. Rated at 475 hp and 1,050 ft-lbs of torque with the 6.7L Power Stroke diesel, and also available with Ford's 7.3L Godzilla V8, it's one of the most capable factory transmissions on the market.

Its Lepelletier geartrain uses four planetary gear sets and multiple inputs to achieve 10 forward speeds — with gears 8–10 as overdrive ratios for maximum top speed and minimal engine strain. Gear ratios span from 4.61:1 (1st) to 0.63:1 (10th).

Why Upgrade the Converter?

Under heavy tow and haul loads, the factory torque converter can exhibit excessive heat buildup and turbine slip — accelerating clutch wear and shortening transmission life. The Suncoast Guardian Converter is engineered to solve exactly that.

Features & Benefits

• Billet CNC'd stator with dual Torrington thrust bearing design — lowers stall speed and improves efficiency
• Manipulated pump and turbine geometry — reduces turbine slip and parasitic loss
• Improved friction material with higher friction coefficient — extends clutch life
• Furnace brazed and TIG welded fin reinforcement — built for durability under extreme loads
• Cooler transmission temperatures — less heat, longer fluid and friction material life
• Hand assembled in Ft. Walton Beach, Florida by American workers

Note: An Adaptive Learning Drive Cycle is recommended after installation to ensure optimal shift adaptation.

Vehicle Fitment

• 2020–2025 Ford F-250 Super Duty – 6.7L Power Stroke Diesel – 10R140 Transmission
• 2020–2025 Ford F-350 Super Duty – 6.7L Power Stroke Diesel – 10R140 Transmission
• 2020–2025 Ford F-450 Super Duty – 6.7L Power Stroke Diesel – 10R140 Transmission
• 2020–2025 Ford F-550 Super Duty – 6.7L Power Stroke Diesel – 10R140 Transmission
