PowerFlo Lift Pump and Fuel System Upgrade kit for 2011-2016 Ford Power Stroke (Long Bed)

Complete PowerFlo Lift Pump Kit for 6.7L Powerstroke – 800 HP Capable

The PowerFlo Lift Pump is the latest drop-in lift pump from the diesel experts at Fleece Performance! Whether you're replacing your factory pump or looking to upgrade, this complete kit includes both the PowerFlo in-tank lift pump and a new frame-mounted filter base with Donaldson filter to replace your factory pump and filter assembly.

Plug-and-Play Installation

Our complete kit requires NO cutting, splicing, or modification of the factory fuel lines or fuel tank. The new filter base mounts directly in the OE filter housing location for a clean, factory-like installation. Combine this kit with our replacement under-hood filter base (FPE-FMC-UHFA-1123) and optional fuel heater (FPE-FH-FMC) for the ultimate fuel delivery setup on your 6.7 Powerstroke!

Direct In-Tank Replacement

The PowerFlo Lift Pump retains your factory fuel lines and water-in-fuel sensor while installing in less than half the time of other high-flow lift pumps.

Ultra-Quiet Dual Gerotor Design

Two is always better than one. The PowerFlo delivers with two industry-proven ultra-quiet gerotor pumps, providing increased flow capacity and the ability to support up to 800 horsepower!

Seamless Integration

The active fill bucket eliminates the need for tank sumps, draw straws, additional air filtration, and the frustrating ¼ tank issues typically encountered when upgrading to a higher-flow lift pump. This kit requires no cutting, splicing, or modification of existing fuel lines, harness, or fuel tank and retains all factory diagnostic functionality.

Aftermarket Capable

Want the benefits of an in-tank pump but need to run your own fuel lines? The pump outlet and return are threaded to accept a -8 O-ring fitting (3/4"-16 thread). This product has been tested and verified with 2011-2016 trucks equipped with S&S Diesel Motorsport DCR conversion kit and the S&S Diesel Motorsport CP4 Disaster Prevention Kit.

Complete Kit Includes:

• PowerFlo Lift Pump with integral fuel level sender

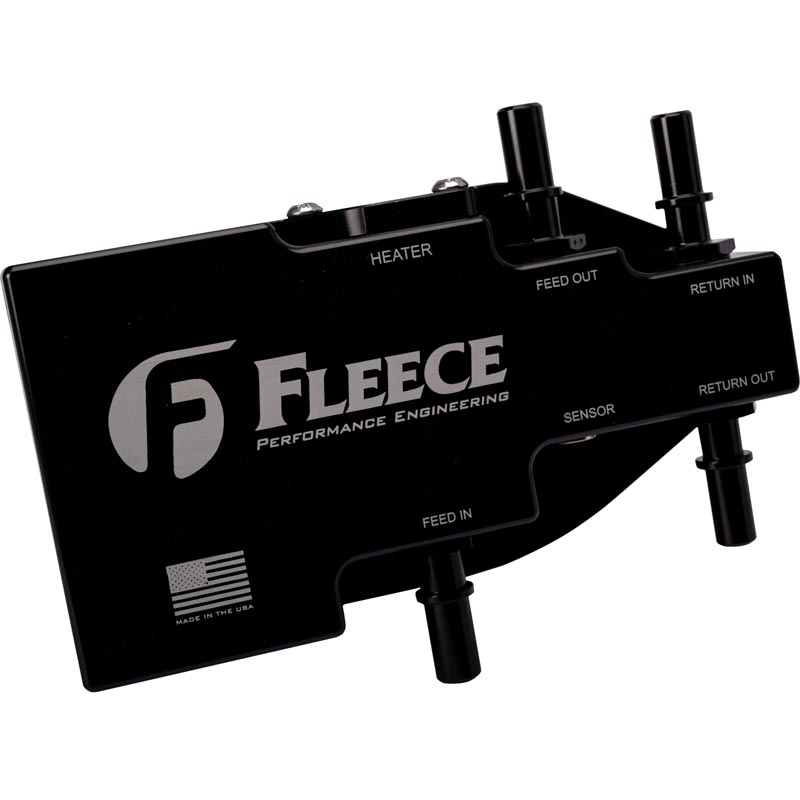

• Filter Base with Donaldson filter (P/N P553203) and provision for optional fuel heater (4-micron rating at 99% efficiency)
• Water-in-Fuel Sensor
• Chassis Wiring Harness and WIF sensor extension harness
• Fuel Sending Unit Tank O-Ring
• Mounting Hardware

Application Notes:

• Operating Pressure: 65-70 PSI at idle
• S&S Diesel Compatibility: Tested and verified to work with 2011-2016 trucks equipped with S&S Diesel Motorsport DCR conversion kit and CP4 Disaster Prevention Kit
• Aftermarket Tank Compatibility: Confirmed to fit Titan and S&B aftermarket fuel tanks
• Biodiesel Compatible: Validated for use with up to 20% biodiesel
