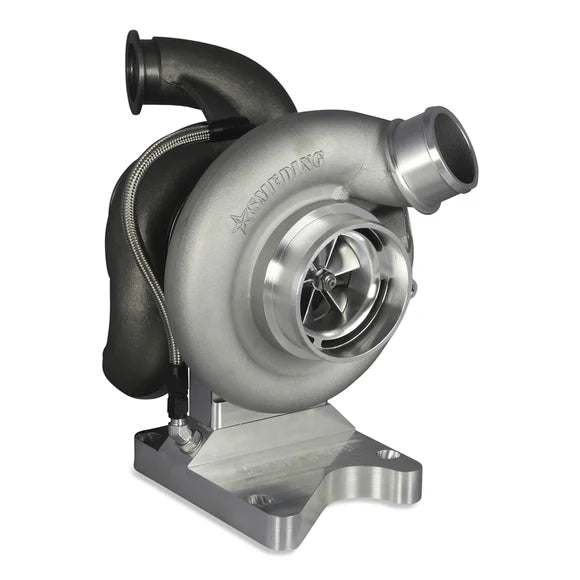

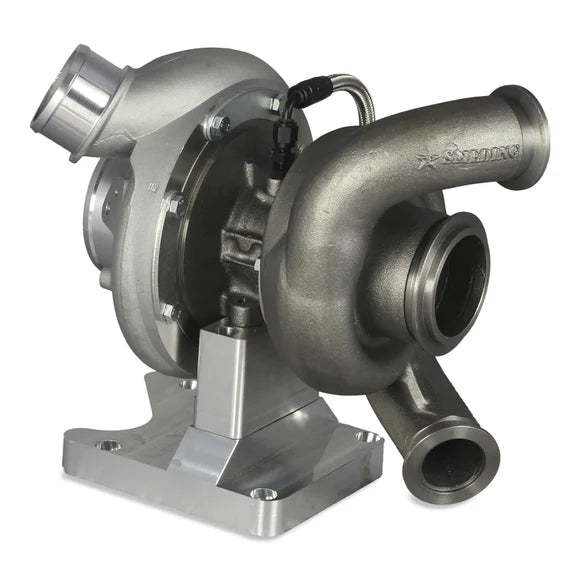

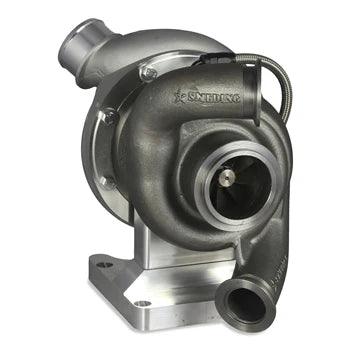

Ford 6.7 S300 E series turbo kit (15-19)

Drop-In Turbo Upgrade for 2015-2019 Ford 6.7L Powerstroke

Eliminate the troublesome, failure-prone factory VGT turbo with Smeding Diesel's drop-in turbo system. Engineered specifically for 2015-2019 Ford F-250 and F-350 trucks, this S300 frame turbo installs directly into the factory location for an easy, reliable upgrade that delivers serious performance.

What's Included:

• Smeding Diesel S300 Turbo with new twin-entry factory-style .91 S300 housing—designed to work seamlessly with all factory exhaust components
• New Up-Pipe Gaskets & Pedestal Gaskets for a leak-free seal
• Intake Boot & Clamps for secure connections
• Coolant Plug included
• Intercooler Boot & Clamps for complete installation

100% Drop-In Installation

Zero modifications required. This kit bolts directly into the factory location and uses your factory exhaust manifolds, up-pipes, downpipe, and intake manifold. Compatible with most aftermarket intercooler piping kits for added flexibility.

Kit Specifications:

• Turbo: S364.5 SXE
• Billet Turbine Wheel: 73mm
• Thrust Bearing: Extreme Duty Steel 360° bearing
• Housing: Twin-entry factory-style .91 S300

Important Note:

This kit requires non-VGT tuning to operate properly. Make sure your tuning is compatible before installation.
