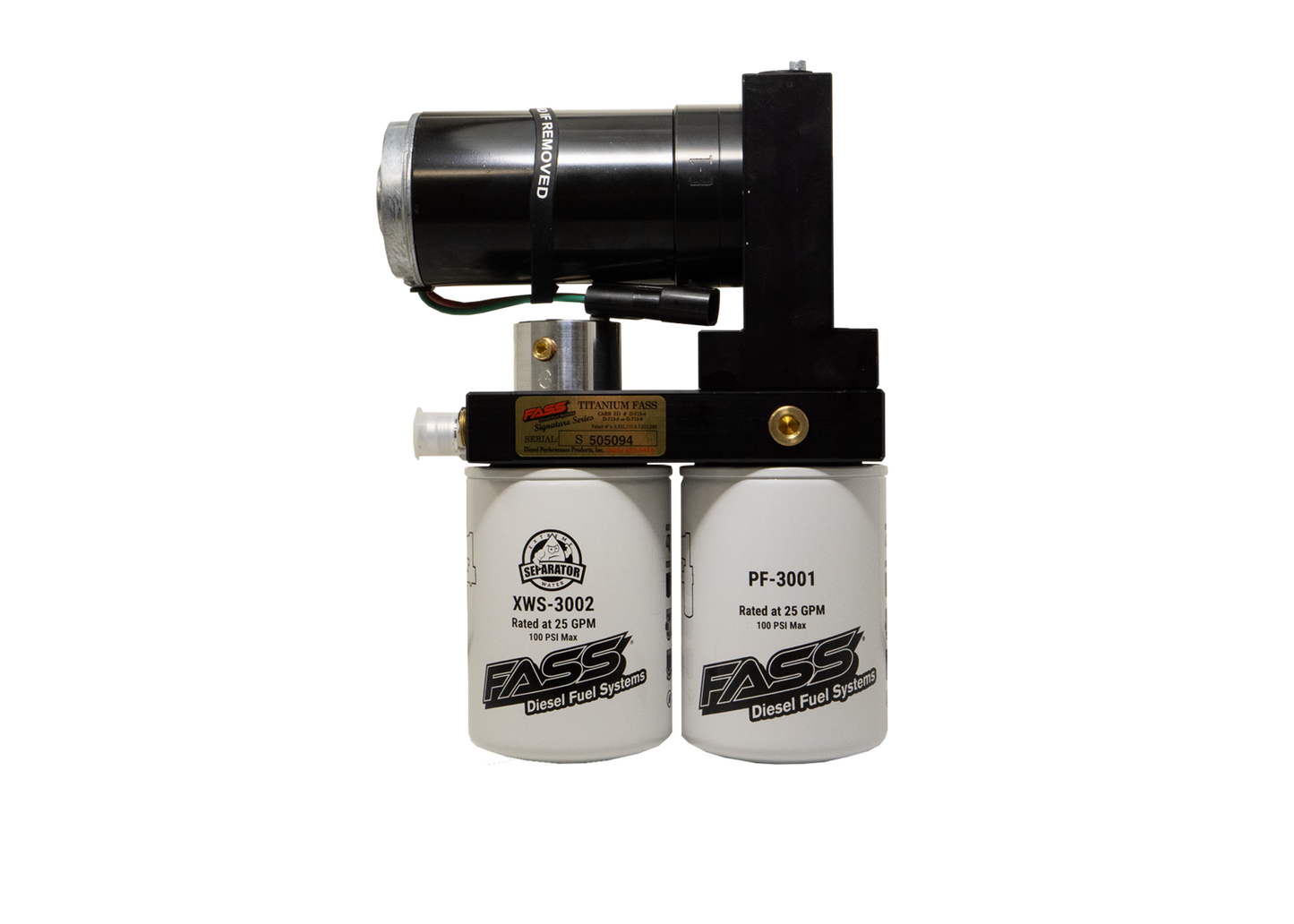

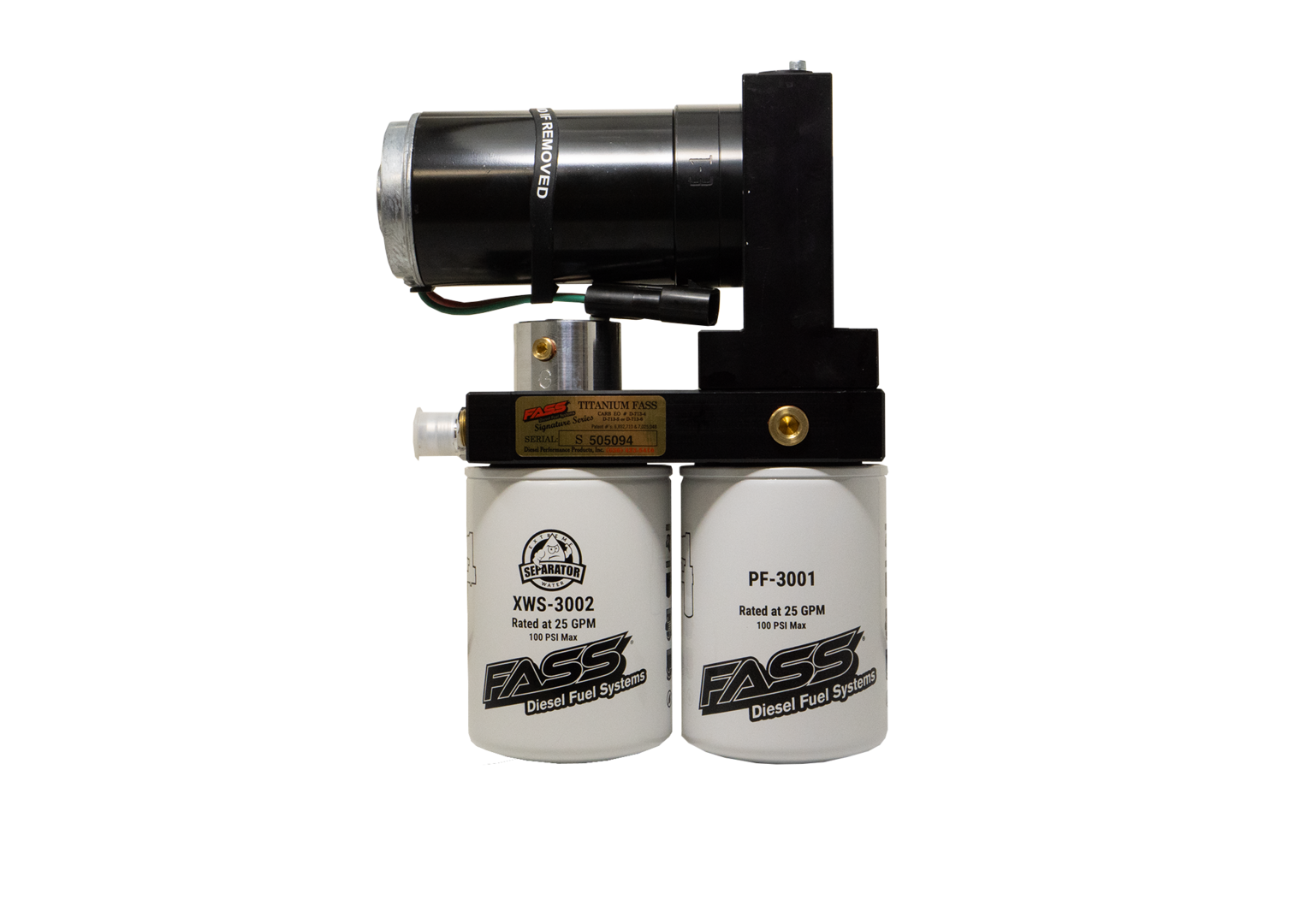

FASS Titanium Signature Series 180F 140GPH Fuel System for Ford 2011-2016 Powerstroke 6.7L

FASS Titanium Signature Series 140GPH Fuel System – Superior diesel fuel delivery and filtration engineered for 2011-2016 Ford Powerstroke 6.7L trucks. Supports up to 600 HP with aggressive tuning and fuel system upgrades.

Fitment:
• 2011-2016 Ford F-250 Super Duty 6.7L Power Stroke
• 2011-2016 Ford F-350 Super Duty 6.7L Power Stroke
• 2011-2016 Ford F-450 Super Duty 6.7L Power Stroke

System Rating: 180F/140GPH/60-65PSI

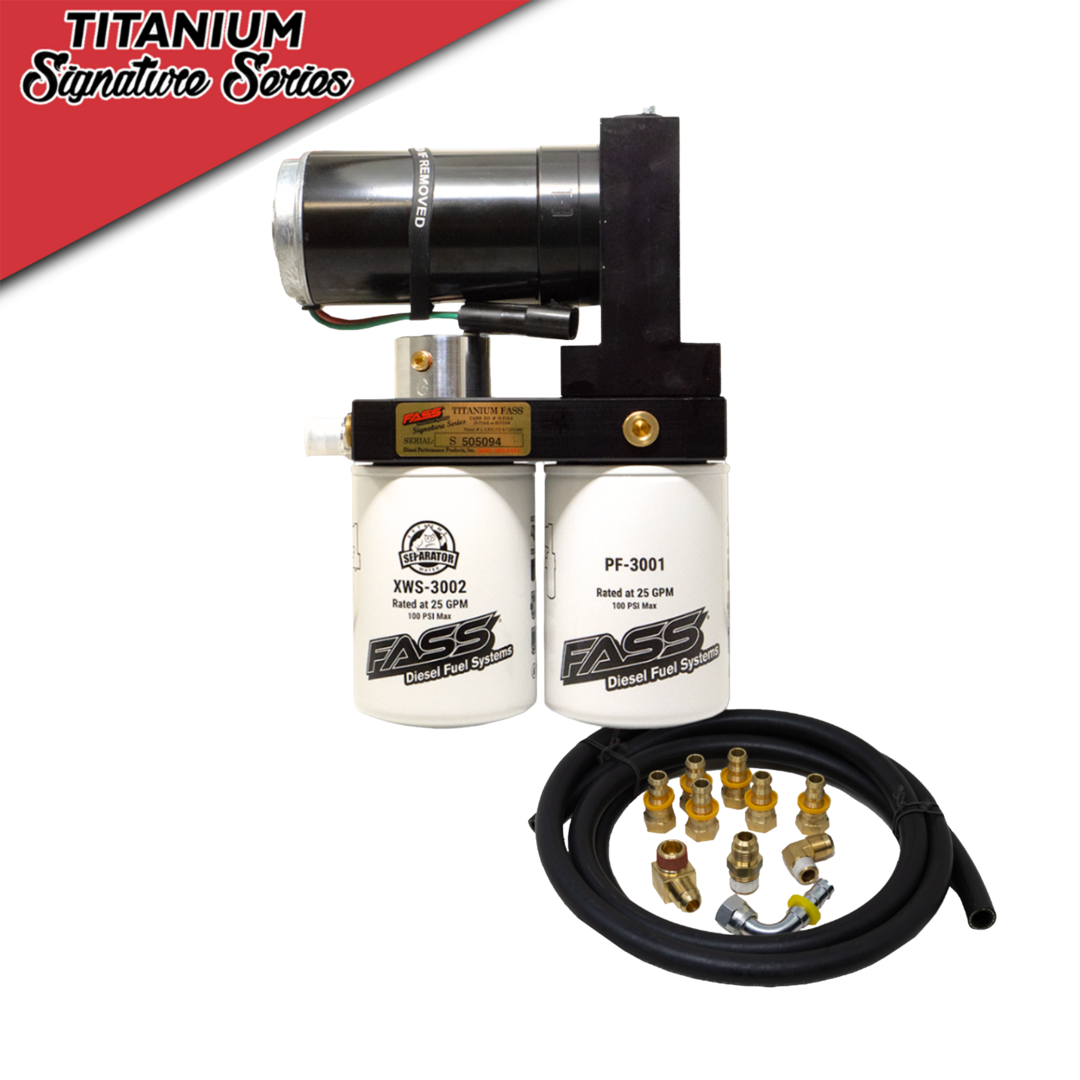

Includes BHF-1005 Bulkhead & Suction Tube Kit:
Machined from 6061 T-6 billet aluminum, this bulkhead fitting mounts directly to the factory fuel tank module (sending unit), allowing the FASS to draw and return fuel directly to the tank. Eliminates 1/4 tank and 1/8 tank issues when installed correctly. PTFE Teflon pickup tube can be cut to adapt to different tank depths. Properly installed, you can safely operate down to approximately 0 miles until empty.

Key Technologies:

• FASS Whisper Technology (FWT) – Drastically reduces sound to a whisper while increasing fuel flow rates (competitors reduce noise by reducing flow)
• Performance Radius Cuts (PRC) – Advanced machining creates smooth fuel flow, prevents air/vapor reintroduction and eliminates eddy currents
• Mass Flow Return (MFR) – Continuously polishes fuel by maintaining positive pressure, preventing cavitation and constantly removing dirt, air, vapor, and water
• Bolt-On Bracket Mounts – No drilling or welding required; uses factory bed bolts for quick installation

Performance Benefits:

• Removes water, air/vapor, and debris from diesel fuel
• 2-micron filtration rating
• Triples injector life expectancy and protects injection system
• Improved cold weather starts
• Fuel mileage improvement
• Smoother engine idle
• Decreases CO and CO2 emissions
• ½-inch fuel lines and ports for maximum flow

System Features:

• Complete replacement system
• Preset 60-65 PSI fuel pressure
• 1,000,000+ mile motor with less than 1% failure rate
• Quietest motor on the market
• 30,000-mile filter life expectancy
• Optional electric heater kits for extreme cold weather
• Optional fuel pressure gauge port
• Limited lifetime warranty (with registration)

Note: Installation on cab and chassis may require modifications.
