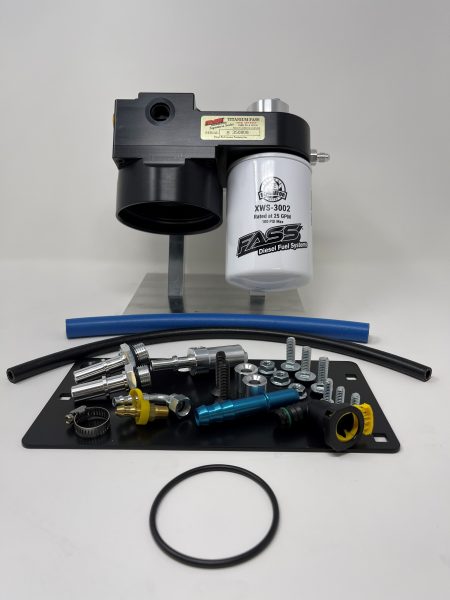

FASS Drop-In Series Diesel Fuel System for 2020-2025 GM/Chevrolet Duramax 6.6L L5P (DIFSL5P2001)

Please Note: THIS IS NOT A LIFT PUMP! This is an air separation/filtration system that utilizes your factory lift pump.

Fits: 2020-2025 Crew Cab Short Bed L5P Duramax

Important: Installation of this kit on a cab and chassis may require modifications. Drop-In Fuel Systems are a plug-and-play filtration upgrade and are not compatible with our Fuel Sump Kit. No additional items are needed for installation. This plug-and-play filtration system retains the OEM in-tank fuel pump. This kit is designed for both crew cab short and long bed trucks. The Drop-In Series for the L5P Duramax may not work with aftermarket oversized fuel tanks due to mounting space restrictions.

Industry-Leading Filtration Protection

The FASS Drop-In Series Diesel Fuel System was engineered by FASS to be the most effective filtration solution for the L5P Duramax. Backed by our limited lifetime warranty, the Drop-In Series Fuel System protects your L5P Duramax from the issues caused by fuel contamination.

Without proper fuel filtration, modern diesel injection systems are prone to excessive wear, which can cost THOUSANDS! By removing over 99% of the water from your diesel fuel, along with entrained air and debris down to 2 Microns, the Drop-In Series System protects the L5P's injection system from premature failure.

Performance Benefits

By eliminating contaminants, our Drop-In Series System for the L5P Duramax:

• Optimizes MPG (results will vary)
• Restores horsepower
• Sharpens throttle response
• Increases fuel lubricity by up to 10% by removing entrained air and air vapor
• Extends the life of fuel injection system components

Simple Installation

This system can be installed in an hour or less! This is a true plug-and-play system, requiring no cutting, wiring, or additional modifications. Better still, this system requires ZERO tuning changes! Whether your L5P is stock or modified, our Drop-In Series Systems will not require adjusting tunes or clearing any codes.

Extreme Water Separator (XWS) Technology

Our industry-leading water removal capabilities (3rd-party proven to exceed 99%) are reinforced by the unique design of our Extreme Water Separator (XWS). If our XWS reaches capacity, it acts as a dam, shutting down your truck and preventing major destruction of fuel system components.

Performance Radius Cuts (PRC)

FASS Drop-In Technology was developed to achieve industry-leading filtration with the simplest possible installation. Performance Radius Cuts are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth-flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming. FASS Drop-In Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts.

Key Features

• The only drop-in L5P filtration system that retains full functionality of the water-in-fuel sensor!
• The only drop-in L5P filtration system with air separation!
• Over 99% free and emulsified water separation with Extreme Water Separator technology
• 2 Micron absolute filtration rating
• 100% drop-in, no additional modifications needed
• Retains the factory in-tank lift pump
• Works with the factory plastic cap or billet filter cap
• Limited lifetime warranty

FAQ

Will the Drop-In Series System for the L5P Create Excessive Back Pressure on the Lift Pump?
In short, no! Through extensive engineering and testing, the FASS R&D team was able to decrease pressure drop (differential pressure) approximately 1 PSI from the OEM filtration system. This was accomplished by maximizing the internal porting size to allow a system that flows more freely in addition to adding superior filtration.

Why Does the Drop-In Series for the L5P Utilize an OEM Water Separator?
We utilize the OEM water separator due to the design of the OEM water in fuel sensor/fuel heater. We are the only Drop-In style system that allows the water in the fuel sensor to properly function as they must be on the DIRTY SIDE of the water separator element to detect the water before it makes it to the clean side.
